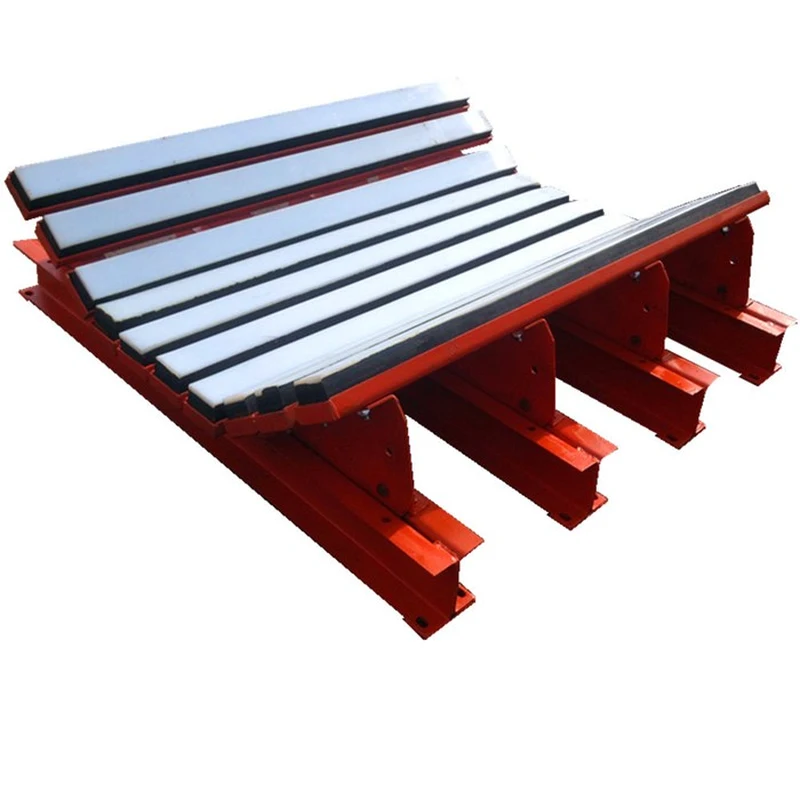

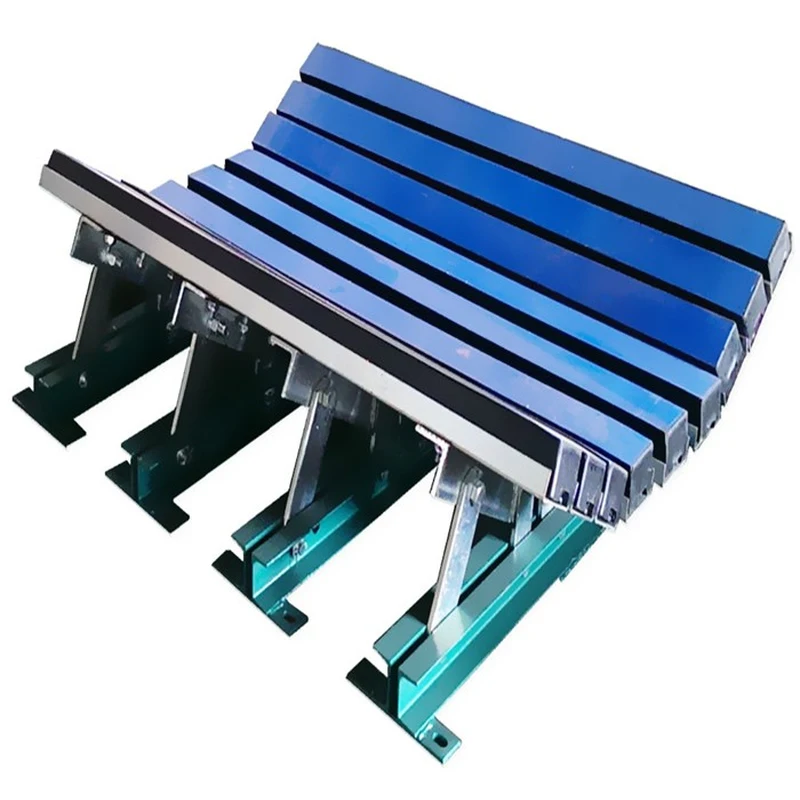

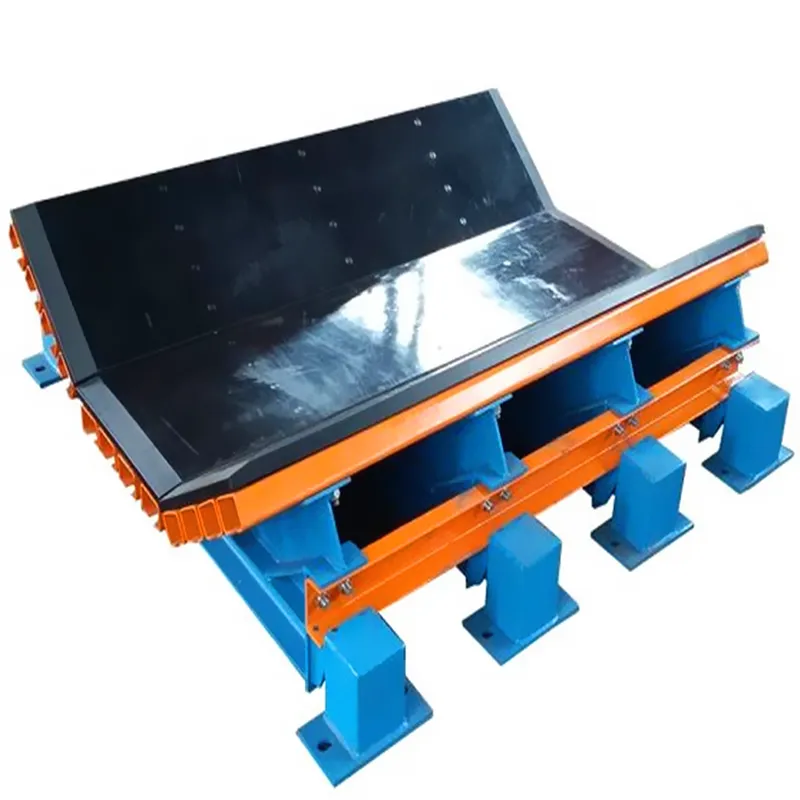

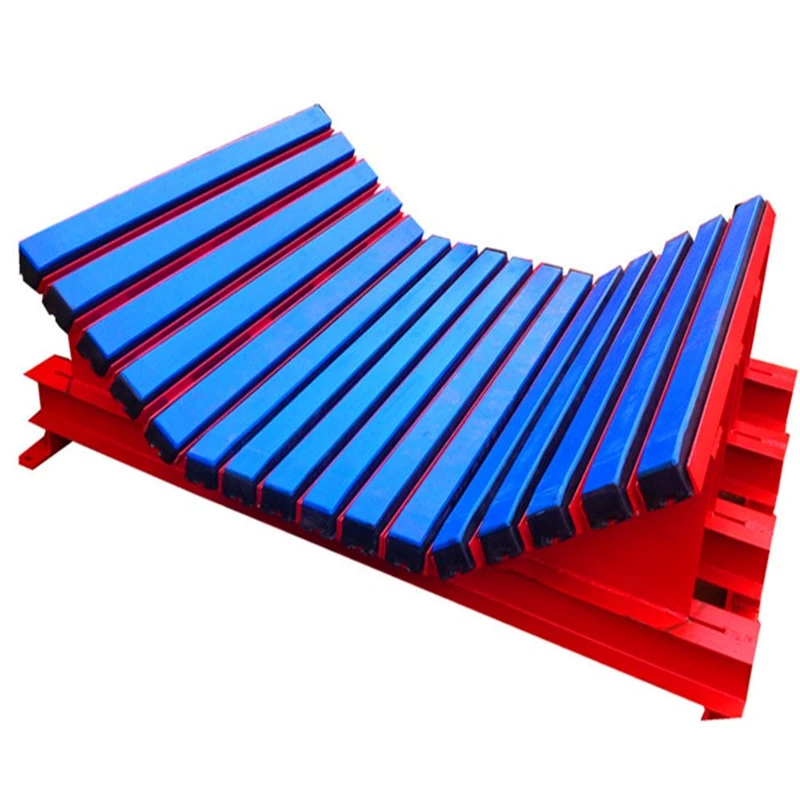

Impact bed is a new type of protective equipment for conveyor. It has been proved by long-term use that the impact bed of belt conveyor has the advantages of low cost, long life and good effect, and is the best product to replace the buffer idler. The impact bed is used below the conveyor belt at the falling point to reduce the impact of falling objects on the conveyor belt.

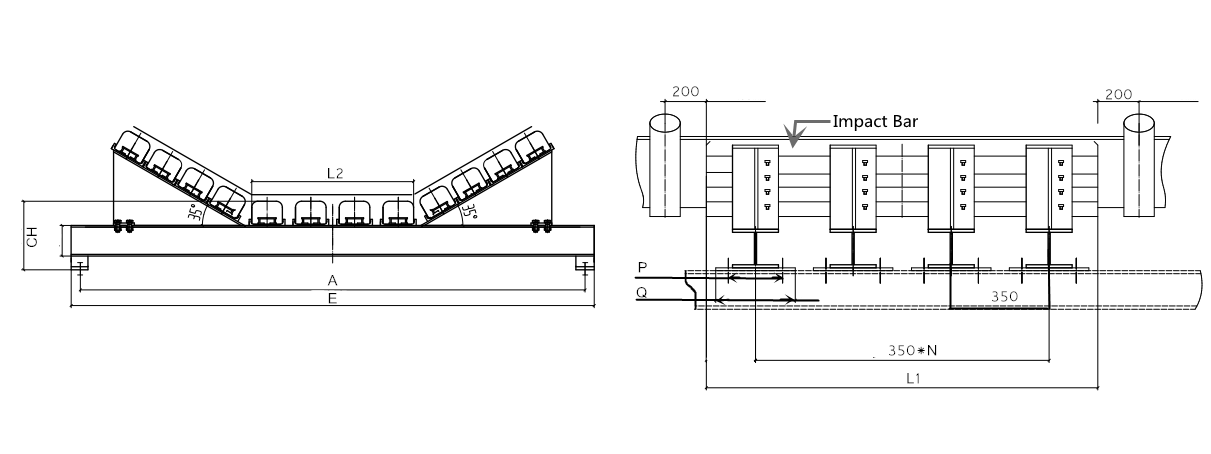

Buffer bed model size table:
model | L1 | CH | N | E | A | L2 | Q | P |
B800*1200 | 1200 | 188 | 3 | 1150 | 1090 | 270 | 220 | 160 |
B1000*1200 | 1200 | 216 | 3 | 1350 | 1290 | 370 | 220 | 160 |
B1200*1200 | 1200 | 246 | 3 | 1600 | 1540 | 420 | 220 | 160 |
B1400*1400 | 1400 | 251 | 3 | 1810 | 1750 | 500 | 220 | 160 |
B1600*1400 | 1400 | 296 | 4 | 2050 | 1990 | 580 | 240 | 180 |
B1800*1600 | 1600 | 315 | 4 | 2280 | 2210 | 720 | 240 | 180 |
B2000*1800 | 1800 | 342 | 4 | 2500 | 2420 | 720 | 240 | 180 |
Note:1、The distance between the two sides of the impact bed and the supporting roller can be set to 200mm.
2、All the above data can be adjusted according to the requirements of the general drawing of belt conveyor design, and the slot angle can be adjusted.
3、Impact Bar ength within 2000mm can be manufactured according to the actual design requirements.
4、The CH value can be designed according to the height of the middle roller in the slot roller group.
